E1C Super Color Night View Trail Camera
    Features

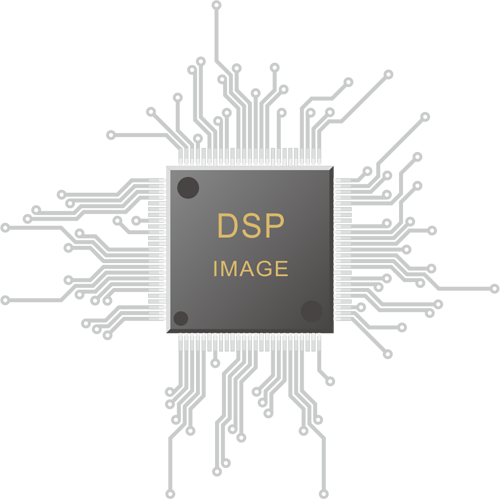

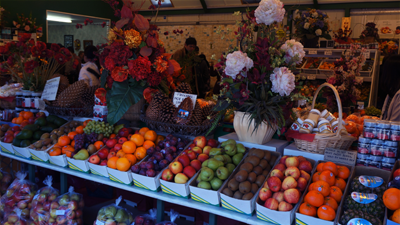

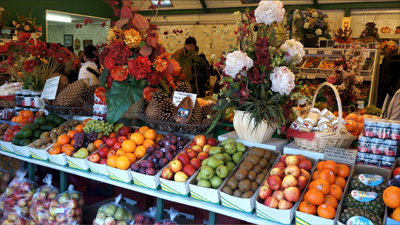

Built in the world's leading image digital signal processing

EREAGLE Camera

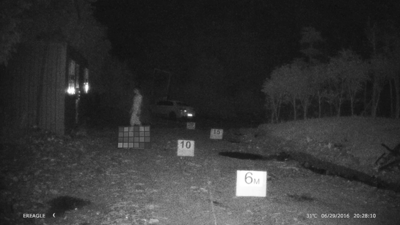

Other Camera

650nm white LED, Optical power: 6W.
Custom optical lens, uniform illumination

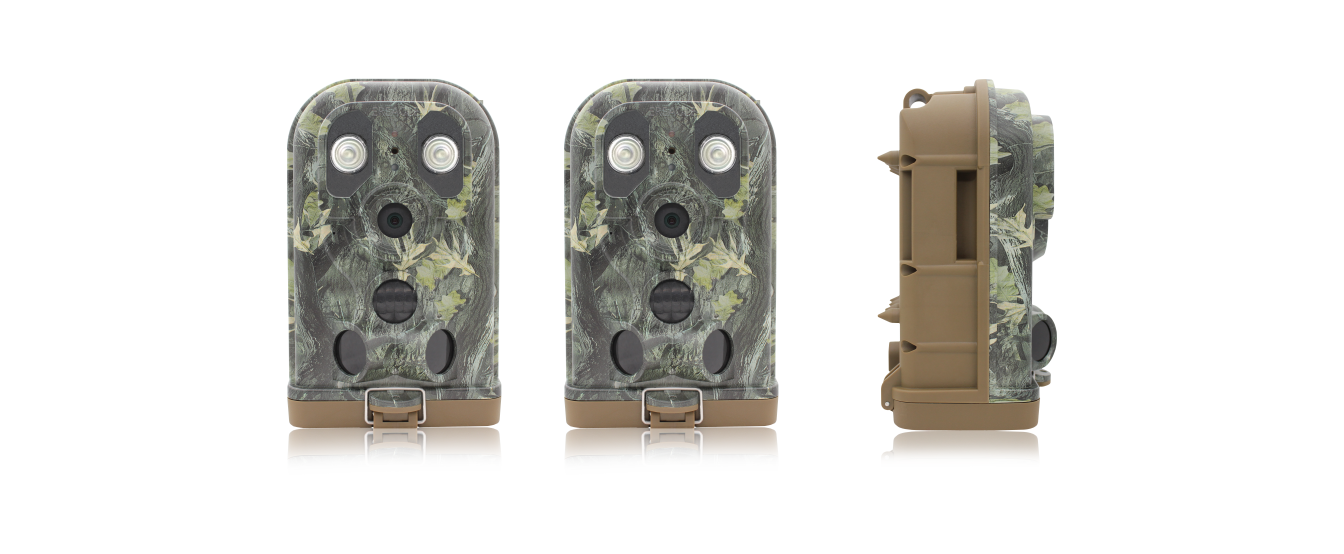

ERE-E1C   ERE-E1

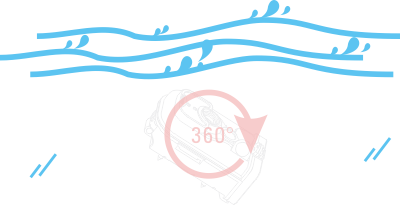

360° waterproof design, Waterproof Resistant IP68

IP58, Can be submerged in water   Can work under conditions of high humidity

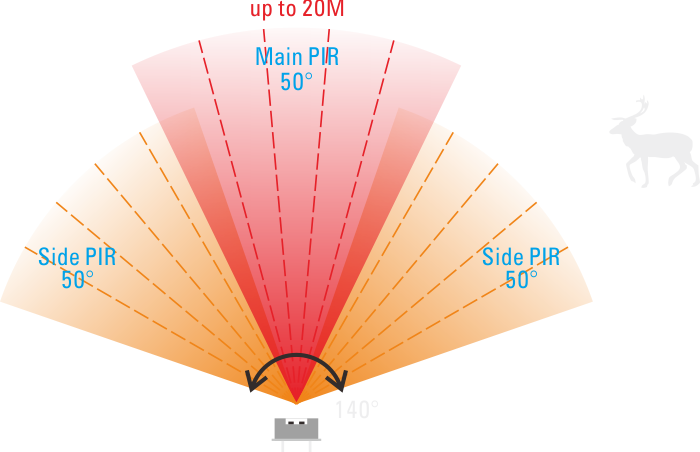

PIR main induction angle 50°(5 area, 10°)
on both sides of the sensor PIR Angle is 140°(10 area, 10°)
The sensing distance can reach 20 m / 65.62 feet, more accurate

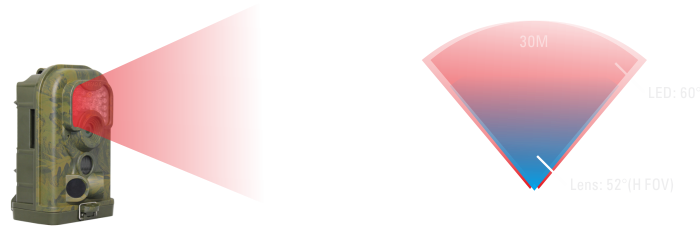

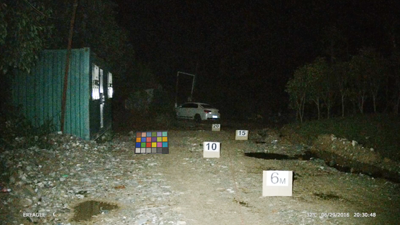

White LEDS(650nm: 2ea) for (0 Lux) up to 30M
Visible light, Can captured color image at night.

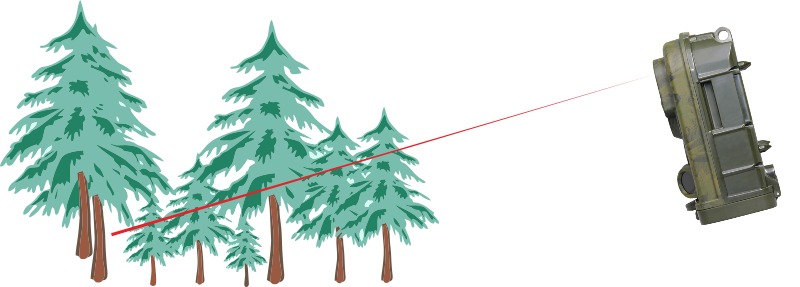

Support the laser alignment, to make more convenient installation

    Specifications
Photo and Video
Image sensor:     5 Mega Pixels 1/3” HD Color CMOS Sensor
Sensitivity (LED off):     0.005 Lux / F1.2 / 30IRE (LED off)
Effective Pixels:     2560×1920 / 4915.2K
Photo definition:     12M / 8M / 5M / 3M / 2M / 1M
  4608×2592 / 3624X2448 / 2560×1920 / 2048×1536 / 1920×1080 / 1280×720
Shooting No.:     1~5
Video definition:     1920×1080/30 fps; 1280×720/60 fps; 1280×720/30 fps; 720×480/30 fps
Video length:     1~120s
Lens:     5 Mega Pixels 6mm HD Fixed Lens(H FOV=52°, F=1.6)
Trigger time:     < 0.8 Sec
Photo+Video:     First photo, then video
Max Shooting:     Support; 0~255, 0 means no limit
View:     Support thumbnail, 16 times enlargement, support video playing, support advance X2 / X4, retreat X2 / X4
LCD Display screen:     2.0” LCD screen; resolution: 960×480; 16.7M Color
Audio parameter
Microphone:     60dB high sensitivity sound collection
Loudspeaker:     0.5W(8Ω)Hi-Fi loudspeaker
buzzer:     ON / OFF, beep while alarm
Audio record:     ON / OFF
Boot sound:     ON / OFF
Key sound:     ON / OFF
PIR parameter
PIR sensing angle:     Main PIR:50° with 8 interval
Pre PIR: Left and right light beams form an angle of 100°, each lens covers 10°
PIR sensing distance:     20M / 65ft(at 77°F / 25°C)
PIR mode:     Main PIR / Main&Side PIR / OFF
PIR sensitivity:     auto / low / normal / high
Trigger interval:     0sec-59min, Programmable
Night vision parameter
IR LED light:     650nm, 2ea white LED
IR flashlight distance:     30M / 98ft
Night vision mode:     Auto / day / night
Lux change:     Day to night: 0~16 Lux optional
Night to day: 0~16 Lux optional
User Interface Stamp
Shooting date:     ON / OFF
Moon phase:     ON / OFF
Camera ID:     ON / OFF
Temperature:     ON / OFF
Product safety:
Password protection:     Support 4 numbers,auto lock the camera if wrongly input the password for 6 times
Product lock:     Padlock installation
Anti-theft lock hole:     support
Timer:
Timer mode:     ON / OFF
Time lapse:     ON / OFF
Timer interval:     0~59 min
Timer:     Can set three period of time per day
Repeat:     From Monday to Sunday optional
Storage,power supply, power consumption parameter
Memory:

4G~32G (recommend SanDisk brand SD card with C10 standard.)

SD card cycle save:     ON / OFF
Power supply:     12×AA
Stand-by time:     5~8 months(4A×AA ~ 12×AA)
External power inupt:     DC 6V / 1A
Auto power off:     Auto power off in 120S while no keypad controlling
Low battery alarm:     Warning tone while less than 20% of the power,auto power off while voltage less than 4V
Stand-by power:     400 uA(0.0004 A)
Power consumption:     250 mA(600 mA while IR LED lights up)
Other parameter
Operation keypad:     6 keys
Interface:     DC input, SD card, USB, TV output, Switch
Mounting:     Strap, tripod nail
Operating temperature humidity:     -30°C~+70°C / 30% ~ 90%RH
Storage temperature humidity:     -40°C~+85°C / 0% ~ 90%RH
Waterproof grade:     IP68(dust proof / submerging test)
Product Dimension:     145.2 x 91 x 78.5mm
Net weight:     320g
Gross weight:     520g
Certificate:     FCC, CE
    Dimensions
