| GSM wireless remote transmission (2G), support SMS, MMS, Email sending. |
 |
| |
|
|
|

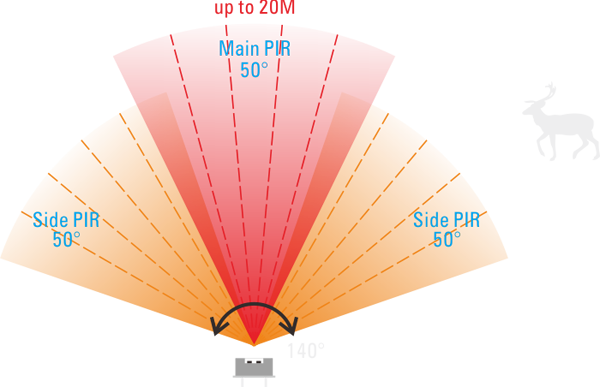

PIR main induction angle 50°(5 area, 10°)
on both sides of the sensor PIR Angle is 140°(10 area, 10°)
The sensing distance can reach 20 m / 65.62 feet, more accurate |
| |
|
 |
 |
| 顶视探测分布图 |
相机安装指导 |
|
|
|
|
|
Support 1.2V / 1.5V / 3.2V / 3.7V batteries ( 14500 / AA / 5# ).
Prevention of reverse connection electronic protection.
|
 |
| |
|
|
|
| Global first trail camera with Ambarella image processor. |
 |
 |
 |
| Rich and true colors |
Image is clearer and more delicate |
| |
|
 |
 |
| Other Camera （without WDR) |
EREAGLE Camera （with WDR) |
| |
|
 |
 |

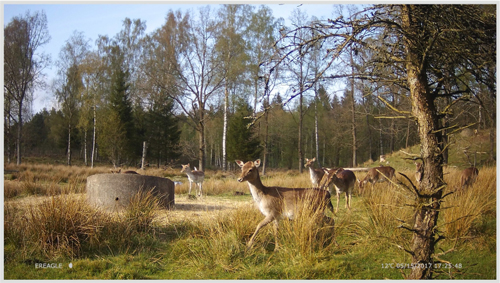

| EREAGLE Camera (Pasture) |

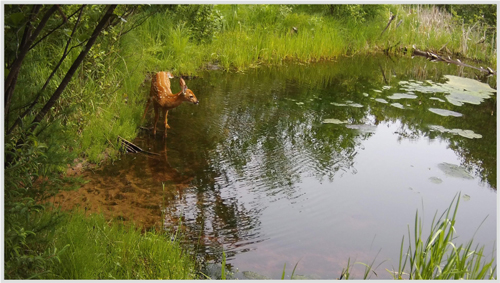

EREAGLE Camera (Forest) |
|
|
|
|
|
| 1080P/30fps full HD video recording, 1080P/720P/480P is optional. |
| |
|
 |
 |
| 720P/30FPS |
1080P/30FPS |
|
| |
|
|
|

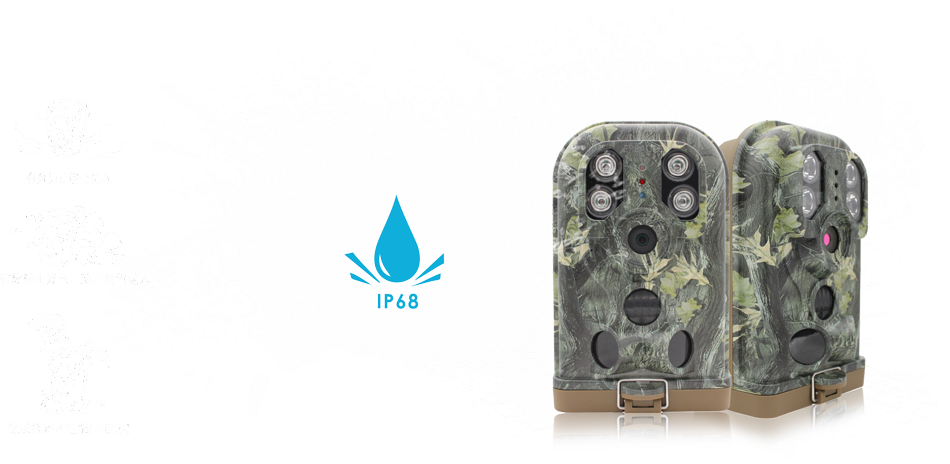

Comprehensive protection design against the harsh environment
Protection level of IP68.(dust tight/flooding) |
 |
| |
|
|
|
Using 4ea 940nm high bright LED, ultra-low red exposure, constant current drive,
light source homogenization. Makes the light more uniform,stable and reliable. |
 |
 |
 |
| Constant current drive, light source homogenization |
Spectrogram |
Light angle |
| |
|
 |
 |
| Not processed (46ea, 5mm, IR LED) |
Processed (4ea, 1.5W, IR LED+Lens) |
|
| |
|
|
|

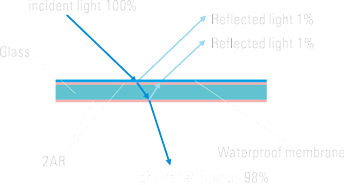

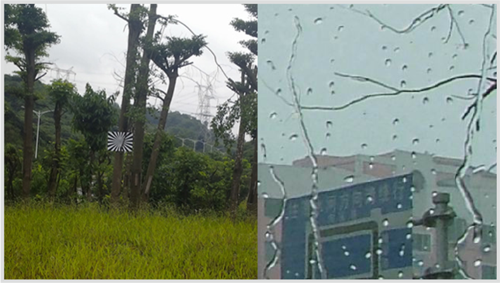

Double-sided optical penetration + waterproof coating, to prevent effecting image quality for water entering
in the glass. Effectively prevent light refraction, scattering, enhance the image anti fog ability . |
 |
 |
| |
|
 |
 |
| Other Camera |
EREAGLE Camera |
|
| |
|
|
|
|

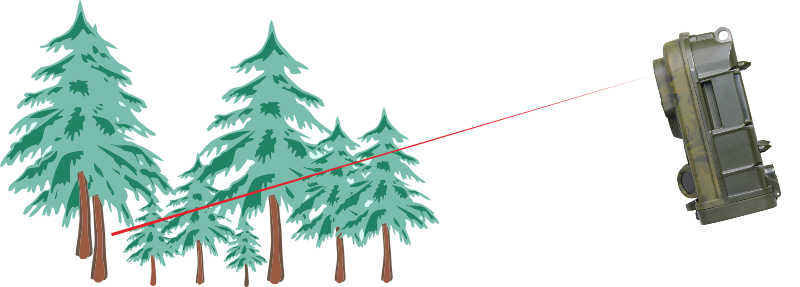

| Laser positioning for accurate and reliable installation , to make more convenient installation. |
 |
| |
|
|
|
|
| Photo and Video |
| Image sensor: |
5 Mega Pixels 1/3” HD Color CMOS Sensor (with Wide Dynamic Range) |
| Sensitivity (LED off): |
0.005 Lux / F1.2 / 30IRE (LED off) |
| Effective Pixels: |
2560×1920 / 4915.2K |
| Photo definition: |
12M / 8M / 5M / 3M / 2M / 1M
4608×2592 / 3624X2448 / 2560×1920 / 2048×1536 / 1920×1080 / 1280×720 |
| Shooting No.: |
1~5 |
| Video definition: |
1920×1080/30 fps; 1280×720/60 fps; 1280×720/30 fps; 720×480/30 fps |
| Video length: |
1~120s |
| Lens: |
7.45mm HD Fixed Lens（FOV=50°, F=3.0） |
| Trigger time: |
< 0.8 Sec |
| Photo+Video: |
First photo, then video |
| Max Shooting: |
Support; 0~255, 0 means no limit |
| View: |
Support thumbnail, 16 times enlargement, support video playing, support advance X2 / X4, retreat X2 / X4 |
| LCD Display screen: |
2.0” LCD screen; resolution: 960×480; 16.7M Color |
| Audio |
| Microphone: |
60dB high sensitivity sound collection |
| Audio Record: |
ON / OFF |
| Boot Sound: |
ON / OFF |
| Key Sound: |
ON / OFF |
| PIR parameter |
| PIR sensing angle: |
Main PIR:50° with 8 interval
Pre PIR: Left and right light beams form an angle of 100°, each lens covers 10° |
| PIR sensing distance: |
20M / 65.62ft （at 77°F / 25°C） |
| PIR mode: |
Main PIR / Main & Side PIR / OFF |
| PIR sensitivity: |
auto / low / normal / high |
| Trigger interval: |
0sec-59min, Programmable |

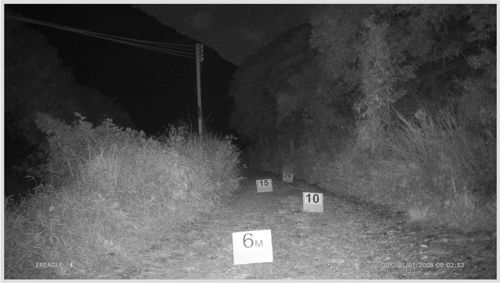

| Night vision |
| IR LED light: |
940nm, 4ea IR LED |
| IR flashlight distance: |
30M / 98ft |
| Night vision mode: |
Auto / day / night |
| Light Level: |
Standard(900mA) / Plus(1300mA) |
| User Interface Stamp |
| User Interface Stamp: |
ON / OFF (Camera ID, Shooting date, Moon phase, Temperature, Signal intensity, Battery Power) |
| Communication: |
| Send Mode: |
SMS / MMS / Email / OFF |
| Recipients: |
SMS / MMS: Up to 4 recipients (3 Phone number and 1 Mail)
Email: Up to 3 recipients (only Mail) |
| Max image: |
0-255 (0: Unlimited) |
| Daily Report: |
OFF / ON (Contains the device name, firmware version, power, signal strength, temperature, TF card capacity, photo and video Number.) |
| Product safety: |
| Password protection: |
Support 4 numbers,auto lock the camera if wrongly input the password for 6 times |
| Product lock: |
Padlock installation |
| Anti-theft lock hole: |
support |
| Timer: |
| Timer mode: |
ON / OFF |
| Time lapse: |
ON / OFF |
| Timer interval: |
0~59 min |
| Timer: |
Can set three period of time per day |
| Repeat: |
From Monday to Sunday optional |
| Storage,power supply, power consumption parameter |
| Memory: |
4G~64G (recommend SanDisk brand TF card with C10 standard.) |
| SD card cycle save: |
ON / OFF |
| Power supply: |
4×AA, 8×AA, 12×AA （Support 1.2V / 1.5V / 3.2V / 3.7V Battery） |
| Stand-by time: |
5~10 months （4×AA ~ 12×AA） |
| External power inupt: |
DC 6~12V / 2A |
| Power Protection: |
Prevention of reverse connection electronic protection (Battery and external power interface ) |
| Auto power off: |
Auto power off in 120S while no keypad controlling |
| Low battery alarm: |
Warning tone while less than 20% of the power，auto power off while voltage less than 4.0V |
| Stand-by power: |
400 uA （0.0004 A） |
| Power consumption: |
250 mA （900 mA while IR LED lights up） |
| Other |
| Operation keypad: |
5+1 keys |
| Interface: |
DC input, TF Card, SIM Card, USB Port |
| Mounting: |
Strap, tripod nail |
| Operating temperature humidity: |
-30°C~+70°C / 30% ~ 90%RH |
| Storage temperature humidity: |
-40°C~+85°C / 0% ~ 90%RH |
| Waterproof grade: |
IP68(dust proof / submerging test) |
| Product Dimension: |
145 x 91x 78.5mm |
| Net weight: |
320g |
| Gross weight: |
520g |
| Certificate: |
FCC, CE |
|
