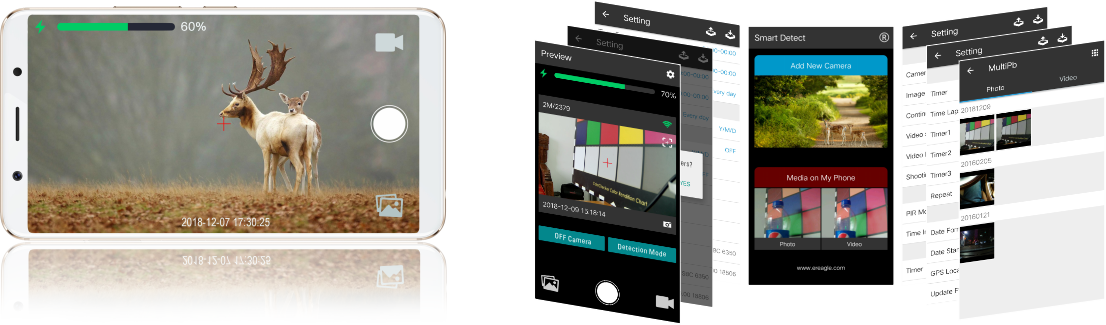

Smart Detect mobile application
Video Preview / Test Shooting / Parameter Setting / Files Management
1080P/30fps Full HD Video Recording, 1080P/720P/480P is Optional.
720P/30FPS 1080P/30FPS

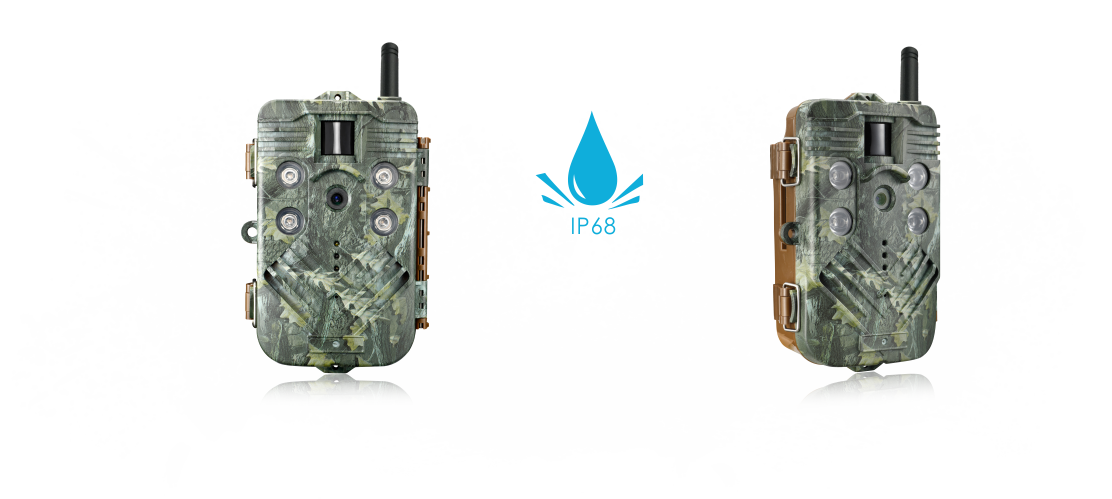

Integrated protection design in harsh environments.
Dustproof, Dampproof and waterproof. Protection level of IP68
7000K white LED / 6W. Custom optical lens, uniform illumination
E3F   E3H

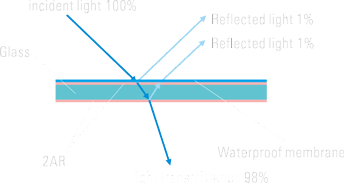

Double-sided optical penetration + waterproof coating, to prevent effecting image quality for water entering
in the glass. Effectively prevent light refraction, scattering, enhance the image anti fog ability .
Other Camera EREAGLE Camera

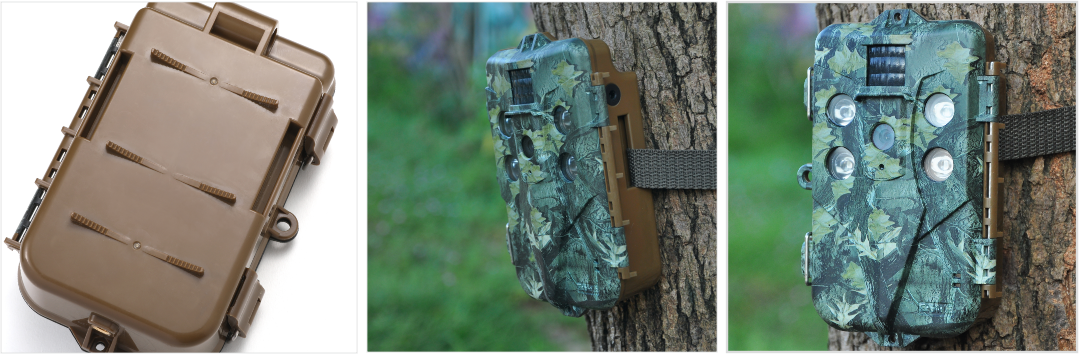

Unique arc tooth design for more solid, flexible and convenientinstallation.

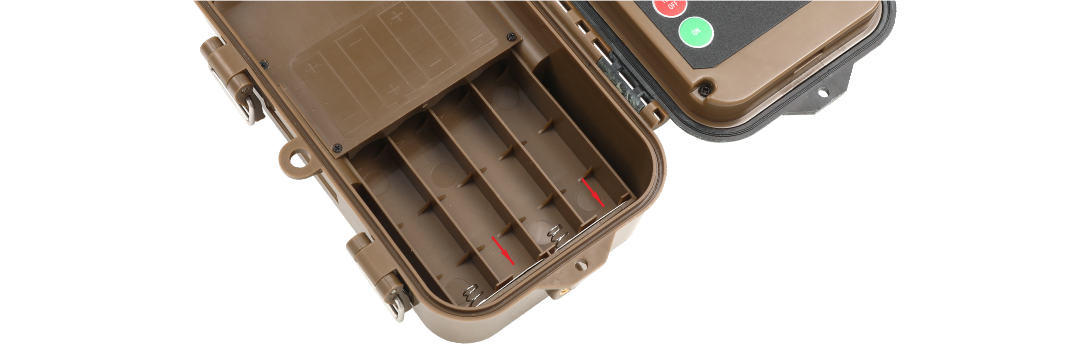

Battery anti-reverse installation design, do not worry about the battery leakage.
    Technical Specifications
Image sensor:     5 MegaPixels 1/2.5" Near IR CMOS Image Sensor
Sensitivity (LED off):     0.001 Lux / F1.2 / 30IRE (LED OFF)
Effective Pixels:     2590×1944 / 5034.9K (4:3)
Photo definition:     20M(5120×3840)  /  12M(4000×3000)  /  8M(3624X2448)  /  5M(2590×1944)
Shooting No.:     OFF / 2-5
Video definition:     1920×1080:60FPS  /  1920×1080:30FPS  /  1280×720:60FPS  /  1280×720:30FPS  /  640×480:120FPS
Video length:     1~300s
Lens:     6.0mm HD fixed lens (H FOV:56°, V FOV:42°, F2.0)
Trigger time:     < 0.5 Sec
Shooting mode:     Photo / Video / Photo+Video / Video+Photo
Max Shooting:     OFF, 1~255
Microphone:     48dB high sensitivity sound collection
Buzzer:     2700HZ, 85dB
  Trigger Alarm
PIR Sensing Angle:     Horizontal: 50°, 2+5 area Fresnel Lens, each lens covers 10°
PIR Sensing Distance:     20M / 65.62ft (at 77°F / 25°C)
PIR Mode:     Main PIR / OFF
PIR Sensitivity:     Normal  /  windy Plateau  /  flat open  /  dense forest
Trigger Interval:     00:00-59:59 Optional (Default: 01:00)
  Environmental Data Monitoring
Temperature and Humidity:      Default internal Temperature sensor   -40~85°C(±0.5°C) / 10~95%(±2%RH), External Temperature and Humidity sensor
Pressure:     Not Supported   300~1100hPa (±0.06hPa)
Altitude:     Not Supported   Altitude:9000~-500M, Pressure+GPS
Positioning System:     Mobile phone APP setting(Auto)
Ambient Illuminance:     Not Supported
Noise Decibel:     Not Supported
  WIFI Communication
Connection Band :     2.4~2.484GHz ISM Band, High gain external antenna.
Standards:     802.11b/g/n, 802.3, 802.3u
Transmitting Power:     -19dBm (Max)
Receiver Sensitivity:     11Mbps-86dBm@8%,54Mbps -73dBm@10%,130Mbps,-66dBm@10%
Transmission Speed:     <150Mbps
Wireless Encryption:     WEP / WPA / WPA2
Transmission Mode:     WIFI hotspot mode
Transmission Distance:     30M (Open Environment)
  Wireless Remote Control and External Extended Communication
Connection Band:     433MHZ
Wireless Encryption:     4-digit key, Dynamic encryption
Transmission Distance:     60M (Open Environment)
Peripheral Expansion:     Supports Remote Control, but consumes more power
Remote Control Enabled:     ON / OFF, The key can't Remote Control the camera when it's "OFF"
Pairing Key Mode:     Remote control instructions for details
External Trigger Alarm:     Not Supported
  Night vision
Light Source:     Highlight White LED, 7000K, Constant Current: 700mA
IR Flashlight Distance:     30M
Day/Night Mode:     Day/night, Auto Switching
  User Interface Stamp and File Type
Stamp:     ON / OFF; Camera Name, Shooting date, Moon phase, Temperature and humidity, pressure, Battery Power
File Type:     Camera Name, Shooting date, Moon phase, Temperature and humidity, pressure, Battery Power
Timer Switch:     ON / OFF
Time Interval Setting:     Three periods and weekly repetitions can be set daily.
Timer Interval:     0~24 Hour
  Product Safety
Hardware Security Configuration:     Padlock installation, Anti-theft lock hole
System Security:     Connect the camera with a password.
Battery Protection :     Battery anti-backconnection protection, Warning prompt when installation error occurs.
Low Power Protection:     Battery power is less than 10%, automatic power-off protection.
Protection for No Operation:     Test mode 120 seconds no operation, auto change to Detection Mode.
  After Connecting to WIFI, 60 seconds no operation is auto change to Detection Mode.
  Data Storage
Storage Medium:     TF Card, 4G~64G (Class 10)
TF Card Cycle Save:     ON / OFF
System Requirements:     IOS 7.0 or Android 4.4 above.
Real-time Video Preview:     Only supports AP mode, Direct Video Connection, easy to install and test.
APP Function:     Installation target, parameter setting, time synchronization, shooting test, power warning, TF card warning, PIR test, full screen preview
Quick Parameter Setting:     Supported
Online Data Management:    Video, Photos, Events: Support online Viewing, Deletion, Download
  Power Supply and Power Consumption
Battery Powered:     4A×AA /8A×AA Battery (1.2V/1.5V/3.7V)
Standby Time:     10~14 Month (8×AA /1.5V)
External Power Supply:     DC 6V / 2.0A
Standby Power:     <80uA (0.00008A / 6V)
Power Consumption:     200 mA (800mA LED ON)
Connector:     DC Input, TF Card, USB Port, Power Button, SMA Antenna Port
Installation Mode:     Strap, Tripod nail
Operating Temperature Humidity:     -30°C~+70°C / 30% ~ 90%RH
Storage Temperature Humidity:     -40°C~+85°C / 0% ~ 90%RH
Waterproof Grade:     IP68 (Dust proof / Submerging test)

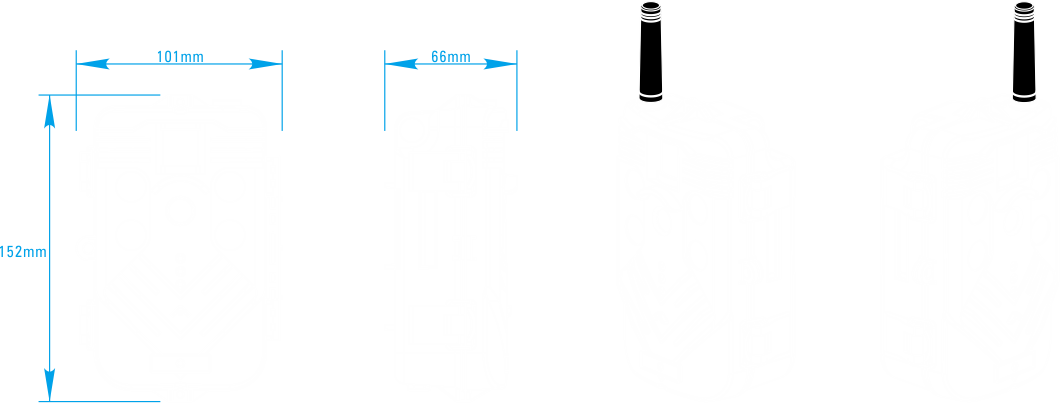

Dimension:     152 x101 x 66mm
Net Weight:     266g
Gross Weight:     485g
Certificate:     FCC, CE, RoHS
