| Built in the world's leading image digital signal processing |
 |
|
 |
| EREAGLE Camera |
 |
| Other Camera |
|
| |
|
|
940nm IR LED, Optical power: 1600mW.
Custom optical lens, uniform illumination |
 |
|
 |
| ERE-E1B |
|
ERE-E1 |
| |
|
|
| 360° waterproof design, Waterproof Resistant IP68 |
 |
|
 |
| IP68, Can be submerged in water |
|
Can work under conditions of high humidity |
 |
|
 |
| |
|
|

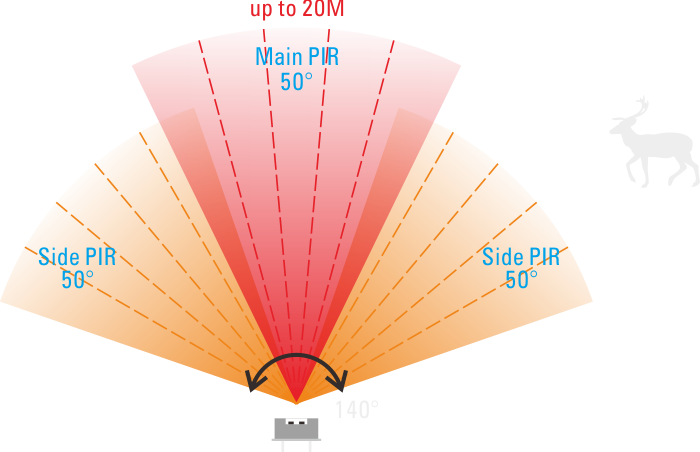

PIR main induction angle 50°(5 area, 10°)
on both sides of the sensor PIR Angle is 140°(10 area, 10°)
The sensing distance can reach 20 m / 65.62 feet, more accurate |
 |
|
|
|
 |
| |
|
|
IR LEDS(940nm: 4ea) for (0 Lux) up to 30M
Invisible light(940nm or 850nm), to prevent in the night exposure target |
 |
| |
|
|

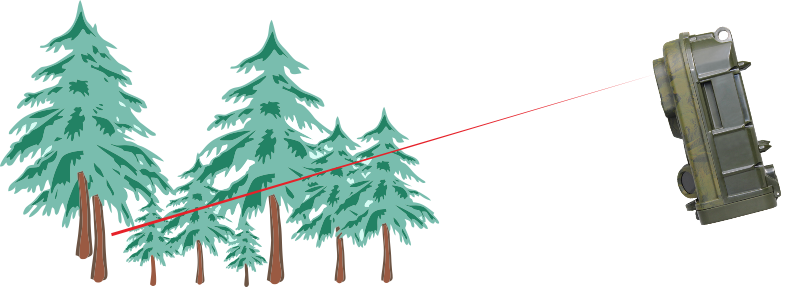

| Support the laser alignment, to make more convenient installation |
 |
| |
|
|
|
|
| Photo and Video |
| Image sensor: |
5 Mega Pixels 1/3” HD Color CMOS Sensor |
| Sensitivity (LED off): |
0.005 Lux / F1.2 / 30IRE (LED off) |
| Effective Pixels: |
2560×1920 / 4915.2K |
| Photo definition: |
12M / 8M / 5M / 3M / 2M / 1M
4608×2592 / 3624X2448 / 2560×1920 / 2048×1536 / 1920×1080 / 1280×720 |
| Shooting No.: |
1~5 |
| Video definition: |
1920×1080/30 fps; 1280×720/60 fps; 1280×720/30 fps; 720×480/30 fps |
| Video length: |
1~120s |
| Lens: |
5 Mega Pixels 7.45mm HD Fixed Lens（FOV=70°, F=3.0） |
| Trigger time: |
< 0.8 Sec |
| Photo+Video: |
First photo, then video |
| Max Shooting: |
Support; 0~255, 0 means no limit |
| View: |
Support thumbnail, 16 times enlargement, support video playing, support advance X2 / X4, retreat X2 / X4 |
| LCD Display screen: |
2.0” LCD screen; resolution: 960×480; 16.7M Color |
| Audio parameter |
| Microphone: |
60dB high sensitivity sound collection |
| Loudspeaker: |
0.5W（8Ω）Hi-Fi loudspeaker |
| buzzer: |
ON / OFF, beep while alarm |
| Audio record: |
ON / OFF |
| Boot sound: |
ON / OFF |
| Key sound: |
ON / OFF |
| PIR parameter |
| PIR sensing angle: |
Main PIR:50° with 8 interval
Pre PIR: Left and right light beams form an angle of 100°, each lens covers 10° |
| PIR sensing distance: |
20M / 65.62ft（at 77°F / 25°C） |
| PIR mode: |
Main PIR / Main&Side PIR / OFF |
| PIR sensitivity: |
auto / low / normal / high |
| Trigger interval: |
0sec-59min, Programmable |
| Night vision parameter |
| IR LED light: |
940nm, 4ea IR LED |
| IR flashlight distance: |
30M / 98ft |
| Night vision mode: |
Auto / day / night |
| Lux change: |
Day to night: 0~16 Lux optional
Night to day: 0~16 Lux optional |
| User Interface Stamp |
| Shooting date: |
ON / OFF |
| Moon phase: |
ON / OFF |
| Camera ID: |
ON / OFF |
| Temperature: |
ON / OFF |
| Product safety: |
| Password protection: |
Support 4 numbers,auto lock the camera if wrongly input the password for 6 times |
| Product lock: |
Padlock installation |
| Anti-theft lock hole: |
support |
| Timer: |
| Timer mode: |
ON / OFF |
| Time lapse: |
ON / OFF |
| Timer interval: |
0~59 min |
| Timer: |
Can set three period of time per day |
| Repeat: |
From Monday to Sunday optional |
| Storage,power supply, power consumption parameter |
| Memory: |
4G~32G (recommend SanDisk brand SD card with C10 standard.) |
| SD card cycle save: |
ON / OFF |
| Power supply: |
12×AA |
| Stand-by time: |
5~8 months（4A×AA ~ 12×AA） |
| External power inupt: |
DC 6V / 1A |
| Auto power off: |
Auto power off in 120S while no keypad controlling |
| Low battery alarm: |
Warning tone while less than 20% of the power，auto power off while voltage less than 4V |
| Stand-by power: |
400 uA（0.0004 A） |
| Power consumption: |
250 mA（600 mA while IR LED lights up） |
| Other parameter |
| Operation keypad: |
6 keys |
| Interface: |
DC input, SD card, USB, TV output, Switch |
| Mounting: |
Strap, tripod nail |
| Operating temperature humidity: |
-30°C~+70°C / 30% ~ 90%RH |
| Storage temperature humidity: |
-40°C~+85°C / 0% ~ 90%RH |
| Waterproof grade: |
IP68(dust proof / submerging test) |
| Product Dimension: |
145.2 x 91 x 78.5mm |
| Net weight: |
320g |
| Gross weight: |
520g |
| Certificate: |
FCC, CE |
