E1B Super IR View Trail Camera
Built in the world's leading image digital signal processing
Other Camera
940nm IR LED, Optical power: 1600mW.

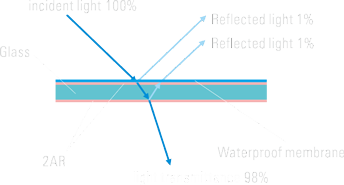

Custom optical lens, uniform illumination
360° waterproof design, Waterproof Resistant IP68
IP68, Can be submerged in water   Can work under conditions of high humidity

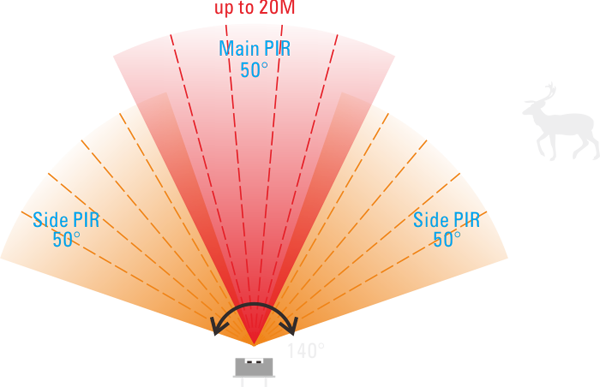

PIR main induction angle 50°(5 area, 10°)
on both sides of the sensor PIR Angle is 140°(10 area, 10°)
The sensing distance can reach 20 m / 65.62 feet, more accurate
IR LEDS(940nm: 4ea) for (0 Lux) up to 30M
Invisible light(940nm or 850nm), to prevent in the night exposure target
Support the laser alignment, to make more convenient installation
Photo and Video
Image sensor:     5 Mega Pixels 1/3” HD Color CMOS Sensor
Sensitivity (LED off):     0.005 Lux / F1.2 / 30IRE (LED off)
Effective Pixels:     2560×1920 / 4915.2K
Photo definition:     12M / 8M / 5M / 3M / 2M / 1M
  4608×2592 / 3624X2448 / 2560×1920 / 2048×1536 / 1920×1080 / 1280×720
Shooting No.:     1~5
Video definition:     1920×1080/30 fps; 1280×720/60 fps; 1280×720/30 fps; 720×480/30 fps
Video length:     1~120s
Lens:     5 Mega Pixels 7.45mm HD Fixed Lens(FOV=70°, F=3.0)
Trigger time:     < 0.8 Sec
Photo+Video:     First photo, then video
Max Shooting:     Support; 0~255, 0 means no limit
View:     Support thumbnail, 16 times enlargement, support video playing, support advance X2 / X4, retreat X2 / X4
LCD Display screen:     2.0” LCD screen; resolution: 960×480; 16.7M Color
Audio parameter
Microphone:     60dB high sensitivity sound collection
Loudspeaker:     0.5W(8Ω)Hi-Fi loudspeaker
buzzer:     ON / OFF, beep while alarm
Audio record:     ON / OFF
Boot sound:     ON / OFF
Key sound:     ON / OFF
PIR parameter
PIR sensing angle:     Main PIR:50° with 8 interval
Pre PIR: Left and right light beams form an angle of 100°, each lens covers 10°
PIR sensing distance:     20M / 65.62ft(at 77°F / 25°C)
PIR mode:     Main PIR / Main&Side PIR / OFF
PIR sensitivity:     auto / low / normal / high
Trigger interval:     0sec-59min, Programmable
Night vision parameter
IR LED light:     940nm, 4ea IR LED
IR flashlight distance:     30M / 98ft
Night vision mode:     Auto / day / night
Lux change:     Day to night: 0~16 Lux optional
Night to day: 0~16 Lux optional
User Interface Stamp
Shooting date:     ON / OFF
Moon phase:     ON / OFF
Camera ID:     ON / OFF
Temperature:     ON / OFF
Product safety:
Password protection:     Support 4 numbers,auto lock the camera if wrongly input the password for 6 times
Product lock:     Padlock installation
Anti-theft lock hole:     support
Timer mode:     ON / OFF
Time lapse:     ON / OFF
Timer interval:     0~59 min
Timer:     Can set three period of time per day
Repeat:     From Monday to Sunday optional
Storage,power supply, power consumption parameter
Memory:     4G~32G (recommend SanDisk brand SD card with C10 standard.)
SD card cycle save:     ON / OFF
Power supply:     12×AA
Stand-by time:     5~8 months(4A×AA ~ 12×AA)
External power inupt:     DC 6V / 1A
Auto power off:     Auto power off in 120S while no keypad controlling
Low battery alarm:     Warning tone while less than 20% of the power,auto power off while voltage less than 4V
Stand-by power:     400 uA(0.0004 A)
Power consumption:     250 mA(600 mA while IR LED lights up)
Other parameter
Operation keypad:     6 keys
Interface:     DC input, SD card, USB, TV output, Switch
Mounting:     Strap, tripod nail
Operating temperature humidity:     -30°C~+70°C / 30% ~ 90%RH
Storage temperature humidity:     -40°C~+85°C / 0% ~ 90%RH
Waterproof grade:     IP68(dust proof / submerging test)
Product Dimension:     145.2 x 91 x 78.5mm
Net weight:     320g
Gross weight:     520g
Certificate:     FCC, CE
